0-5000kg Compression Load Cell With 0-10V 0-5V 4-20mA Output

0-5000kg Compression Type Load Cell With 0-10V 0-5V 4-20mA Output

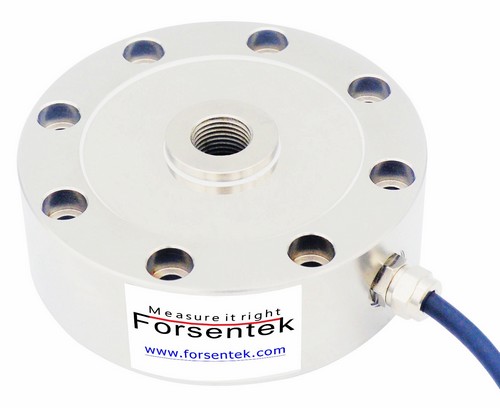

The FCMN is a robust compression load cell with built-in amplifier, designed for accurate and stable force measurement in a wide range of industrial applications. Manufactured from high-quality stainless steel, it delivers excellent durability and corrosion resistance, ensuring reliable performance even in harsh environments. As a compact pancake load cell, it is available in rated capacities of 500 kg, 1000 kg, 2000 kg, 3000 kg, and 5000 kg, making it suitable for diverse force monitoring and testing requirements across automation, material testing, and process control systems.

Featuring an integrated signal conditioning circuit, this load cell with built-in amplifier operates on a 12–24 V DC power supply and provides standard analog outputs such as 0–5 V, 0–10 V, and 4–20 mA. These outputs allow direct connection to PLCs, controllers, and data acquisition systems without additional signal processing, simplifying installation and system design. The central M16×1.5 threaded hole ensures precise load application when compression forces are applied vertically, improving measurement accuracy and repeatability. With its compact structure and easy integration, the FCMN offers a dependable and efficient solution for precise compression force measurement.

Specifications

0-5000kg Compression Type Load Cell With 0-10V 0-5V 4-20mA Output

Click here to download data sheet

0-5000kg Compression Load Cell With 0-10V 0-5V 4-20mA Output Images
